WLAN Pi R4
This is a complete unit, fully assembled, ready to rock out of the box.
What is included
Raspberry Pi 4
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
4 GB RAM
Bluetooth 5.0, BLE (on-board)
10/100/1000 Mbps Ethernet
1x USB Type-C (OTG & Power)
2x USB Type-A 3.0 ports
2x USB Type-A 2.0 ports
Micro-SD card slot
Power input: 5V DC via USB Type-C
Panda Wireless PAU0F AXE3000 WiFi 6E USB Adapter
Up angle / 90 degree USB adapter
Waveshare LCD display & buttons HAT
1.44” LCD display
1x joystick (5-position)
3x pushbuttons, configured as shortcuts
A - reachability / LLDP neighbour / eth0 IP info
B - hotspot mode trigger
C - shutdown / restart
32 GB micro SD card with imaged with the latest and greatest version of WLAN Pi OS
3D printed PETG components
3D Printed Rubber-like
Button pads
Joystick cap v2
4x M2.5 accessory mounting threads (if you don’t use rubber feet)
What is Not included
Power Adapter
USB Cable
Non-Features
To avoid ‘discovery disappointment’ please exercise ‘expectation management’ by paying special attention to the limitations highlighted below:
No PoE
No internal battery
This is a complete unit, fully assembled, ready to rock out of the box.
What is included
Raspberry Pi 4
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
4 GB RAM
Bluetooth 5.0, BLE (on-board)
10/100/1000 Mbps Ethernet
1x USB Type-C (OTG & Power)
2x USB Type-A 3.0 ports
2x USB Type-A 2.0 ports
Micro-SD card slot
Power input: 5V DC via USB Type-C
Panda Wireless PAU0F AXE3000 WiFi 6E USB Adapter
Up angle / 90 degree USB adapter
Waveshare LCD display & buttons HAT
1.44” LCD display
1x joystick (5-position)
3x pushbuttons, configured as shortcuts
A - reachability / LLDP neighbour / eth0 IP info
B - hotspot mode trigger
C - shutdown / restart
32 GB micro SD card with imaged with the latest and greatest version of WLAN Pi OS
3D printed PETG components
3D Printed Rubber-like
Button pads
Joystick cap v2
4x M2.5 accessory mounting threads (if you don’t use rubber feet)
What is Not included
Power Adapter
USB Cable
Non-Features
To avoid ‘discovery disappointment’ please exercise ‘expectation management’ by paying special attention to the limitations highlighted below:
No PoE
No internal battery
This is a complete unit, fully assembled, ready to rock out of the box.
What is included
Raspberry Pi 4
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
4 GB RAM
Bluetooth 5.0, BLE (on-board)
10/100/1000 Mbps Ethernet
1x USB Type-C (OTG & Power)
2x USB Type-A 3.0 ports
2x USB Type-A 2.0 ports
Micro-SD card slot
Power input: 5V DC via USB Type-C
Panda Wireless PAU0F AXE3000 WiFi 6E USB Adapter
Up angle / 90 degree USB adapter
Waveshare LCD display & buttons HAT
1.44” LCD display
1x joystick (5-position)
3x pushbuttons, configured as shortcuts
A - reachability / LLDP neighbour / eth0 IP info
B - hotspot mode trigger
C - shutdown / restart
32 GB micro SD card with imaged with the latest and greatest version of WLAN Pi OS
3D printed PETG components
3D Printed Rubber-like
Button pads
Joystick cap v2
4x M2.5 accessory mounting threads (if you don’t use rubber feet)
What is Not included
Power Adapter
USB Cable
Non-Features
To avoid ‘discovery disappointment’ please exercise ‘expectation management’ by paying special attention to the limitations highlighted below:
No PoE
No internal battery
WLAN Pi R4 Complete

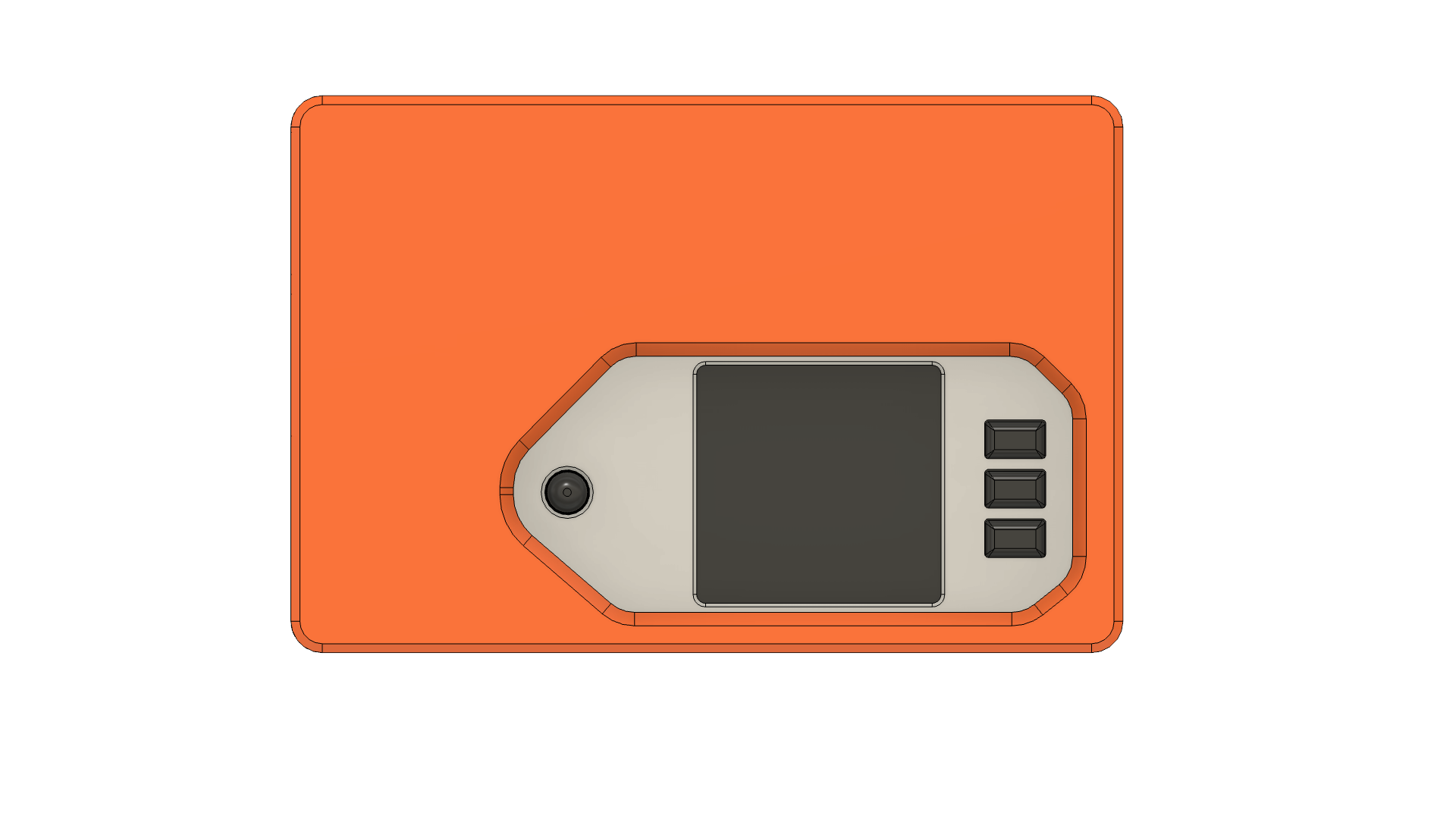

The WLAN Pi R4 Community Edition is literally built upon the Raspberry Pi 4, sandwiched within a Waveshare Lightweight Aluminium Alloy Case / heatsink and finished off with a 3D-printed PETG fascia.
WLAN Pi
Built by Wi-Fi professionals for Wi-Fi professionals!
This new generation of WLAN Pi is built upon the Raspberry Pi platform and runs WLAN Pi OS (a custom ‘Wi-Fi-focused’ fork of Raspberry Pi OS).
The WLAN Pi can perform a variety of wireless networking tasks:
Operate as an iPerf2, iPerf3 throughput testing endpoint
LibreSpeed test server, browser based http speed test utility
WLAN Pi Profiler, used to discover the true capabilities of Wi-Fi clients
Remote Sensor
for scanning with WiFi Explorer Pro
for packet capture using Airtool 2
Wi-Fi Analysis
Kismet
TCPDUMP
Aircrack-ng
Wireless Console, un-tethered access to your equipment console port
Chat-Bot, remotely interact with your WLAN Pi via Telegram
CDP/LLDP neighbour detection
Internet service reachability
For a comprehensive (and up to date) list of features check out the WLAN Pi User Guide.
